SG Rebuild

Post  z on Tue Feb 08, 2011 8:53 pm

Going to post pics as I go on this....

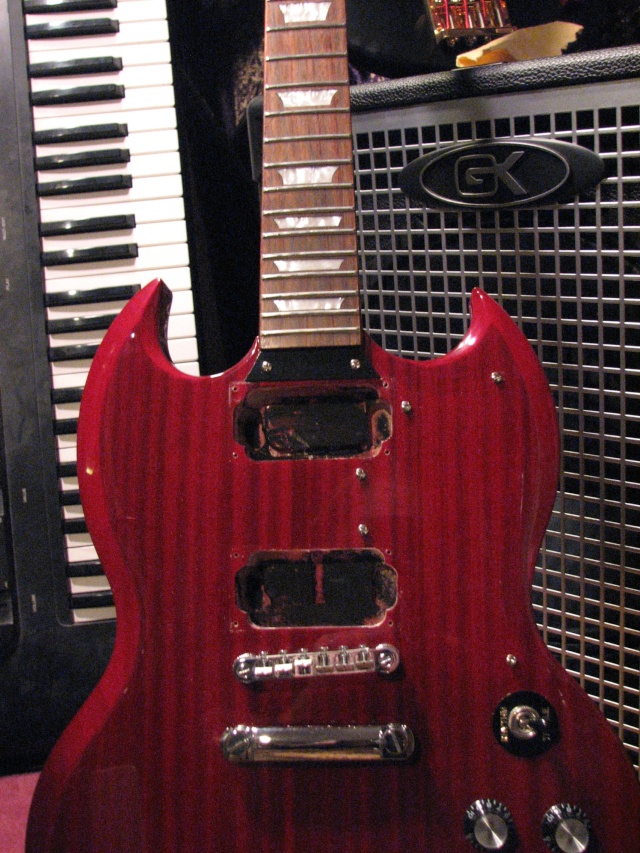

Here's the body with the stock PUPs removed.



And here's a side-view of the PUPs.



As you can see, the rings are different. The neck pickup ring is quite a bit thinner than the
bridge pickup. So it's going to be tricky for me since the creme rings I got are Gibsons, and they
are both the thickness of the bridge ring on the Epiphone.

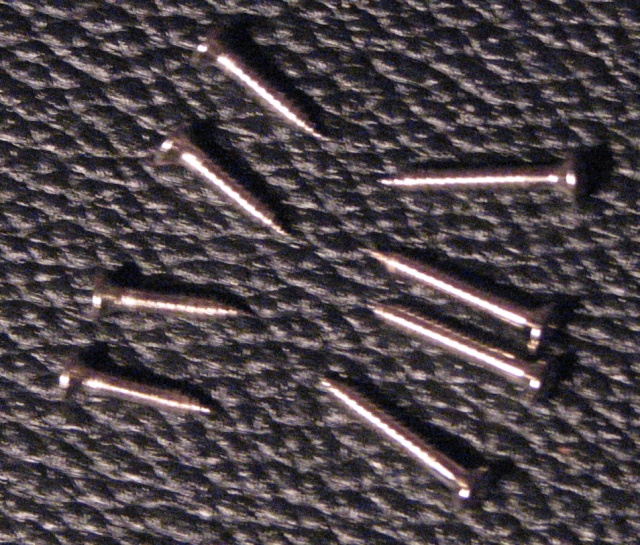

And, of course, the screws holding the PUPs in are different sizes (because of the rings being different).
So I have to make sure not to mix them up (but that's ok. I'm pretty careful doing these things).




Might have to stick with the black rings until I figure it out.

Z
